Vulcan SoM
Presentation of the Vulcan Versal™ Prime and AI Edge SoM

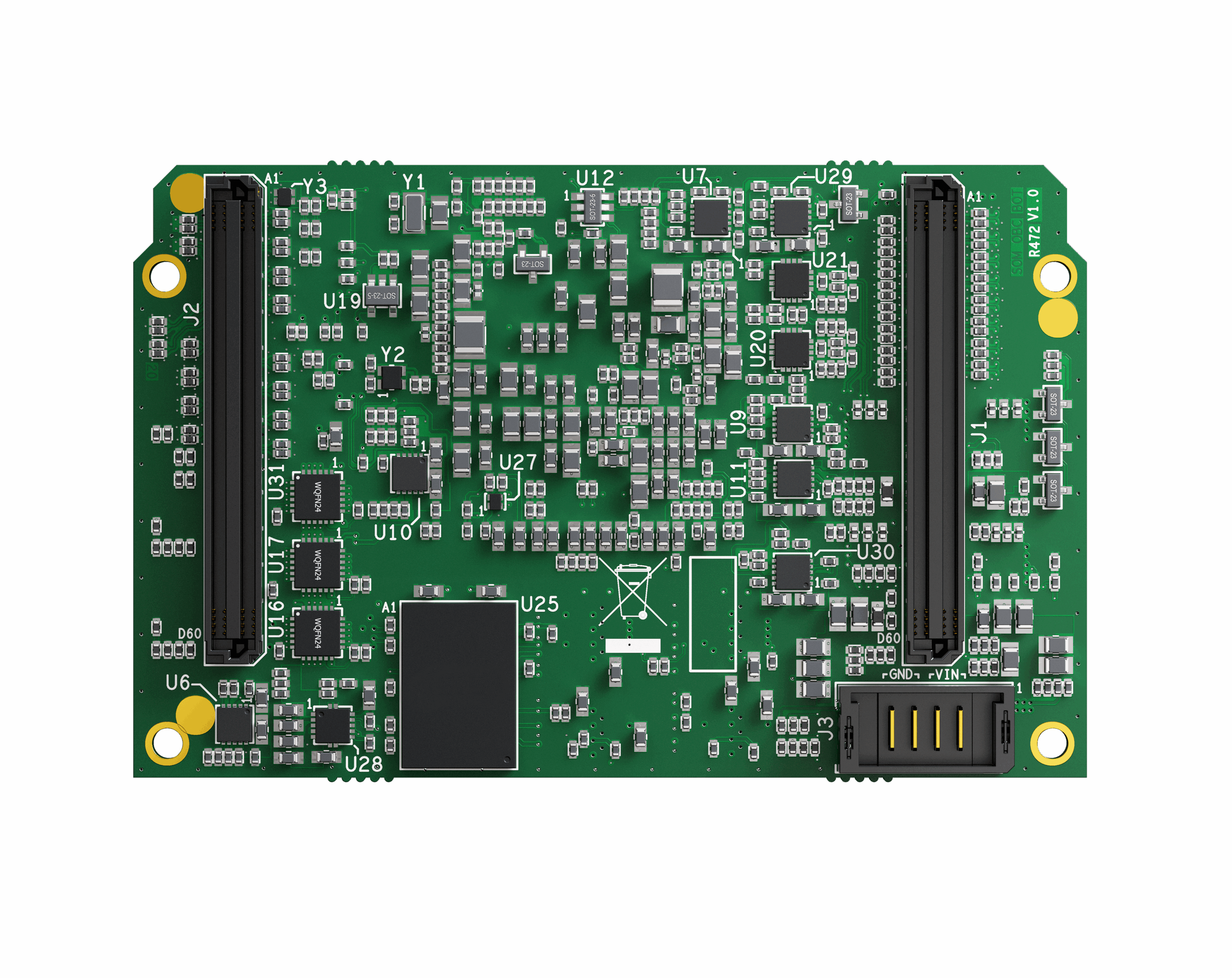

Product overview
The Vulcan SoM is available in two versions, either with a Versal™ Prime or an AI Edge FPGA SoC system-on-module. This versatile platform combines AI processing, advanced connectivity, and optimized performance, making it an ideal choice for designing and deploying complex algorithms while integrating multiple functions on a single chip. It offers lower power consumption, enhanced system performance, and next-generation technology capabilities.
The system-on-module (SoM) is delivered with an active heatsink, complete with a heat spreader and fan, specifically tailored for embedded applications. Leveraging a SoM for your embedded system accelerates the design process and reduces time-to-market by offering pre-built, rigorously tested components for seamless system integration.
Target applications for the Vulcan Versal™ SoM span diverse markets such as Bioscience & Instrumentation, Quantum computing, AI Vision Analytics, Embedded Airbone Systems, Radar systems and Electronic Warfare.
The Vulcan Versal™ SoM is fully compatible with its carrier board, providing a complete and robust development solution.
Benefits & features
- AMD Xilinx® Versal™ Prime FPGA or AI Edge
- VM2202 / VE2802
- 2x PCIe Gen4 x8 End Point or Root Port
- Dual Core ARM Cortex A-72 and Dual Core ARM Cortex RSF
- 2x PCIe Gen4 x8 interfaces
- 44x HDIO + 48x XPIO
- 2x LP-DDR4, 1x MRAM ST-DDR4
- Industrial Temp Grade
- Long Term Supply
- Designed for Bioscience & Instrumentation, Quantum computing, AI Vision Analytics, Embedded Airbone Systems, Radar systems and Electronic Warfare.
Discover the Vulcan SoM, a next-generation FPGA SoC module based on AMD Xilinx® Versal™ Prime and AI Edge technologies. This innovative module offers unrivalled performance for embedded systems, combining AI processing, advanced connectivity, and exceptional flexibility.
The Versal™ Prime and AI Edge FPGA SoC represent the leading-edge of adaptive platforms developed by AMD Xilinx® :
The Versal™ Prime range is designed to offer an optimal balance of performance, flexibility and connectivity. Ideal for applications requiring intensive data processing and low latency, it is particularly suited to mission-critical embedded systems.
AI Edge has been specifically developed for AI applications and edge computing deployments. This range integrates advanced AI Engines and dedicated gas pedals, enabling massive volumes of data to be processed in real time, while optimizing energy consumption.
Why choose Vulcan SoM?
This module is designed to simplify the development of embedded systems, thanks to its pre-integrated and tested components. It comes with a high-performance active cooling system and a complete support kit including guides, manuals and software tools for rapid implementation.
Our Vulcan Versal™ Prime / AI Edge FPGA SoC system-on-module is specially designed for customer needs. Our sales team is available to advise you on the best solution according to your needs and product specifications, at sales@reflexces.com
Diagrams
Block diagram of the Vulcan Versal™ Prime / AI Edge FPGA SoC module:
Tech specs
| Features | Vulcan System-on-Module | |
| Ordering Information | RXCVM2202PH35-SOM00I Availability: Q3-2025 using Versal™ Prime VM2202 |
RXCVE2802PH35-SOM00I Availability: Q4-2025 using Versal™ AI Edge VE2802 |
| FPGA SoC | Versal™ Prime VM2202: 1140 KLC, UltraRAM 74Mbit, 1312 DSP Engines Dual Core Arm Cortex-A72, Dual Core Arm Cortex-R5F Speed grade 1, Industrial temp grade |
Versal™ AI Edge VE2802: 304 AI-Engines, 1140 KLC, UltraRAM 74Mbit, 1312 DSP Engines Dual Core Arm Cortex-A72, Dual Core Arm Cortex-R5F Speed grade 1, Industrial temp grade |
| External Memory | Connected to the NOC = 1x LPDDR4 x64bit, 8GByte, @2400MT/s 1x LPDDR4 x32bit, 1GByte, @2400MT/s Connected to the PL = 1 bank MRAM 1Gbit |
|
| Mezzanine Connectors | 16 transceivers GTYP @25Gbps + 16 transceivers GTYP CPM PCIe Gen4 44 HDIO maximum 48 XPIO maximum |
|
| FPGA Configuration | 2Gbit Quad SPI Flash | |
| Software Configuration | 128Gbyte NAND Flash eMMC (Stores U-Boot, Linux Kernel, and RootFS) | |
| PS Communication & Networking |
128GByte eMMC 2Mbit EEPROM Min 1520Mb QSPI NOR Flash 54 PSIO (PMC and PS) |
|
| Mechanical & Environmental Specification | EMI immunity : TBD; EMI emission : TBD, Vibration : TBD; Shock :TBD 5V +/- 10% Industrial temperature grade -40°C to +85°C UL 94-V0 compliant components |
|
| Power & Dissipation | Max W : TBD, active heatsink (heat spreader + heatsink + fan) | |
| Board Management Controller | Communication with Carrier board: I2C, JTAG Communication with FPGA : UART to FPGA Monitoring : Current, voltages, temperature, ID information Programming : Clock Control: Power, temperature protection, Fan |
|
| Module dimensions | 84mm x 55mm (3.3 x 2.2 inches) | |
| Compliance | RoHS/REACH compliant | |
| Deliverables | • Vulcan module & its active cooling system • Board Support Package (to download from our online technical support) after purchase of a module and its carrier board: -Starter Guide, module and carrier board Reference Manuals, Interconnect pinout file -Mechanical drawings, assembly files -FPGA test design (vivado 2024.x version) -BMC Software : TBD -HPS Software: --Build with: TBD --U-boot bootloader • 1-year technical support and warranty • Online support at support.reflexces.com (after purchase of a kit) |
|
| MOTS = Modified version (on request) | • Conformal coating • Custom heatsink system • Contact sales for customization |
|
Deliverables
Deliverables for the purchase of a System-on-Module:
- Vulcan module
- Active heatsink with heat spreader and fan
Ordering information:
RXCVM2202PH35-SOM00I using Versal™ Prime VM2202
Availability: Q3-2025
RXCVE2802PH35-SOM00I using Versal™ AI Edge VE2802
Availability: Q4-2025
